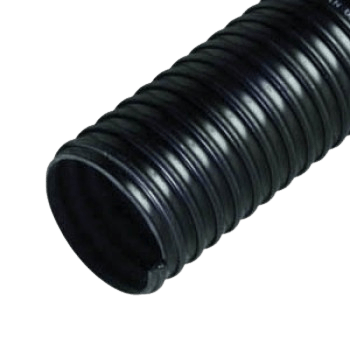

Chemical Suction Hose[KR-180]
Uses
- Heavy duty abrasion resistant suction hose for vacuum truck or handling abrasives such as crushed rock , sand, pea, gravel, cement powder, fertilizer, iron ore and grains.
Characteristics
- Provide good abrasion, chemical and UV resistance. Static dissipating with no grounding wire.
- Synthetic rubber with carbon black, rigid PVC helix, smooth bore ,corrugated out surface with smooth skin.
- Sevice Temperature Range : -40°F ~ 140°F
| I.D (Inches) | O.D (Inches) | Pitch (Inches) | Minimum Bend Radius 72°F(Inches) | Working Pressure 72°F(Psi) | Vacuum Rating 72°F(In Hg) | Weight (Lbs/ft) | Standard Length(ft) |
|---|---|---|---|---|---|---|---|
| 1 1/4 | 1.6 | 0.33 | 2.0 | 45 | 29.8 | 0.31 | 100 |
| 1 1/2 | 1.9 | 0.35 | 2.0 | 45 | 29.8 | 0.37 | 100 |
| 2 | 2.4 | 0.39 | 2.5 | 40 | 29.8 | 0.50 | 100 |
| 2 1/2 | 3 | 0.56 | 2.5 | 35 | 29.8 | 0.88 | 100 |
| 3 | 3.5 | 0.59 | 3.0 | 35 | 29.8 | 1.10 | 100 |
| 3 1/2 | 4.11 | 0.64 | 4.0 | 30 | 29.8 | 1.35 | 100 |
| 4 | 4.63 | 0.65 | 4.5 | 30 | 29.8 | 1.77 | 50,100 |
| 5 | 5.76 | 0.87 | 5.0 | 30 | 28.0 | 2.47 | 50,100 |
| 6 | 6.8 | 0.87 | 9.2 | 30 | 28.0 | 3.08 | 50,100 |
| 8 | 9.04 | 0.91 | 15.0 | 30 | 27.0 | 5.65 | 50 |
| 10 | 11.18 | 1,00 | 30.0 | 28 | 25.0 | 8.88 | 20 |
| 12 | 13.31 | 1.18 | 40.0 | 25 | 25.0 | 10.43 | 20 |
