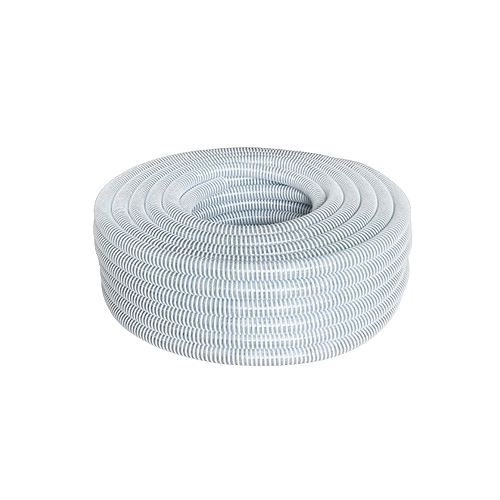

General Duty Suction Hose[KL-C]
Uses
- General Water Suction & discharge
Characteristics
- Long
- Excellent mobility
- Good pressure resistance
- Provide good abrasion, chemical and UV resistance.
- Sevice Temperature Range : -20°F ~ 140°F
| I.D (Inches) | O.D (Inches) | Pitch (Inches) | Minimum Bend Radius at 72°F (Inches) | Working Pressure at 72°F (Psi) | Vacuum Rating at 72°F (In Hg) | Weight (Lbs/ft) | Standard Length (ft) |
|---|---|---|---|---|---|---|---|
| 1 | 1.25 | 0.3 | 1.5 | 50 | 29.8 | 0.18 | 100 |
| 1 1/4 | 1.52 | 0.33 | 2.0 | 45 | 29.8 | 0.22 | 100 |
| 1 1/2 | 1.81 | 0.35 | 2.5 | 45 | 29.8 | 0.35 | 100 |
| 2 | 2.36 | 0.39 | 3.0 | 40 | 29.8 | 0.50 | 100 |
| 2 1/2 | 2.87 | 0.56 | 4.5 | 35 | 29.8 | 0.68 | 100 |
| 3 | 3.5 | 0.59 | 6.0 | 35 | 29.8 | 1.00 | 100 |
| 4 | 4.63 | 0.65 | 8.0 | 30 | 29.8 | 1.52 | 100 |
| 6 | 6.85 | 0.87 | 11.0 | 30 | 28.0 | 3.10 | 50, 100 |
| 8 | 9.04 | 0.91 | 16.0 | 30 | 28.0 | 5.38 | 25 |
| 10 | 11.26 | 1.02 | 30.0 | 30 | 28.0 | 8.88 | 20 |
