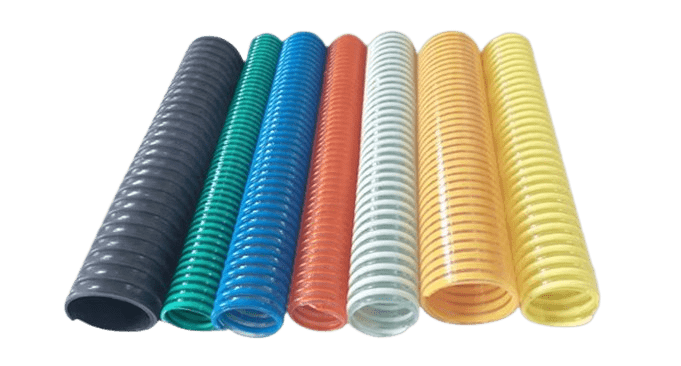

Heavy Duty Suction Hose[KH-113GR113CL]
Uses
- Heavy Duty Water Suction & Discharge.
Characteristics
- Heavy Duty water suction and discharge hose.
- Provide good abrasion, chemical and UV resistance.
- Flexible PVC ,rigid PVC helix, smooth bore, smooth out surface.
- Sevice Temperature Range : -13°F ~ 140°F
| I.D (Inches) | O.D (Inches) | Pitch (Inches) | Minimum Bend Radius 72°F(Inches) | Working Pressure 72°F(Psi) | Vacuum Rating 72°F(In Hg) | Weight (Lbs/ft) | Standard Length(ft) |
|---|---|---|---|---|---|---|---|
| 1 1/4 | 1.47 | 0.26 | 3.0 | 80 | 29.8 | 0.29 | 100 |
| 1 1/2 | 1.77 | 0.30 | 4.0 | 70 | 29.8 | 0.39 | 100 |
| 2 | 2.30 | 0.33 | 5.0 | 65 | 29.8 | 0.63 | 100 |
| 2 1/2 | 2.84 | 0.37 | 6.0 | 65 | 29.8 | 0.87 | 100 |
| 3 | 3.35 | 0.37 | 8.0 | 55 | 29.8 | 1.05 | 100 |
| 4 | 4.45 | 0.43 | 10.0 | 50 | 29.8 | 1.80 | 100 |
