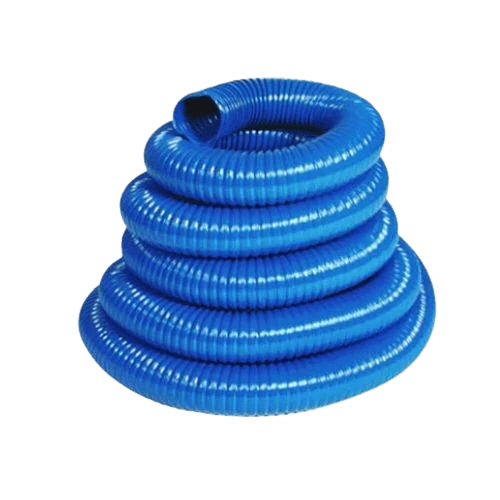

Heavy Duty Suction Hose[KH-116BLUE]
Uses
- Heavy Duty Water Suction & Discharge with increased flexibility.
Characteristics
- Heavy Duty Cold water suction and discharge hose.
- Provide good abrasion, chemical and UV resistance.
- Flexible PVC ,rigid PVC helix, smooth bore, smooth out surface
- Sevice Temperature Range : -40°F ~ 140°F
| I.D (Inches) | O.D (Inches) | Pitch (Inches) | Minimum Bend Radius 72°F(Inches) | Working Pressure 72°F(Psi) | Vacuum Rating 72°F(In Hg) | Weight (Lbs/ft) | Standard Length(ft) |
|---|---|---|---|---|---|---|---|
| 1 | 1.25 | 0.22 | 1.5 | 70 | 29.8 | 0.25 | 100 |
| 1 1/2 | 1.78 | 0.30 | 2.5 | 56 | 29.8 | 0.38 | 100 |
| 2 | 2.33 | 0.33 | 3.0 | 50 | 29.8 | 0.64 | 100 |
| 3 | 3.38 | 0.37 | 6.0 | 50 | 29.8 | 1.10 | 100 |
| 4 | 4.46 | 0.43 | 10.0 | 42 | 29.8 | 1.85 | 100 |
| 6 | 6.67 | 0.53 | 13.0 | 28 | 28.0 | 3.37 | 50,100 |
| 8 | 8.83 | 0.70 | 20.0 | 21 | 28.0 | 5.80 | 25 |
