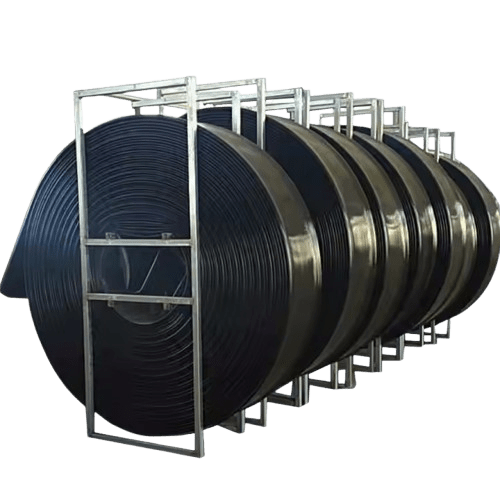

Kobra Flat Hose
Uses
- This hose is made from themoplastic polyther based polyurethane(TPU) by high pressure around a circular woven jacket made from high tenacity filament polyester yarn.
Characteristics
- extreme abrasion resistance capability make the hose adapt to more working conditions.
- color:black, other colors on request.
- Temperature Range:-40°C~70°C
| Size (Inches) | Working Pressure (W.P.) (bar) | Burst Pressure (B.P.) (bar) | Wall Thickness (mm) | Weight (kg/m) | Tensile Strength (kg) | Length (m) |
|---|---|---|---|---|---|---|
| 4″ | 20 | 60 | 4.0 | 1.6 | 34,100 | 50-200 |
| 6″ | 18 | 54 | 4.0 | 2.8 | 35,000 | 50-200 |
| 8″ | 14 | 42 | 4.2 | 3.23 | 39,000 | 50-200 |
| 10″ | 14 | 42 | 4.6 | 4.59 | 43,300 | 50-200 |
| 12″ | 10.5 | 31.5 | 4.2 | 5.1 | 59,600 | 50-200 |
| 12″ | 14 | 42 | 5.8 | 6.4 | 67,700 | 50-200 |
