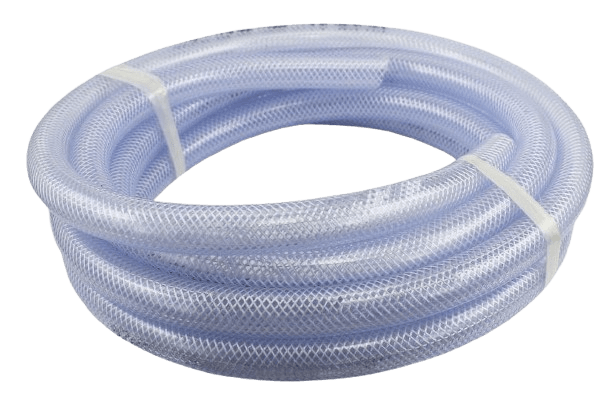

Pressure Resistant Braided Hoses
Uses
- Water supply
- Oil supply
- Various industrial apparatuses
- Air supply
Characteristics
- Transparent
- Strong restoring force
- High UV, oil, chemical resistance
- Various sizes
- Meter marks
| Inner Diameter | Outer Diameter | Length (Roll) | Pressure (at 20°C) | ||
|---|---|---|---|---|---|
| mm | inch | mm | mm | m | kg/cm2 |
| 6 | 1/4 | 6 | 10 | 50-100 | 10 |
| 8 | 5/16 | 8 | 12 | 50-100 | 10 |
| 9 | – | 9 | 13 | 50-100 | 10 |
| 10 | 3/8 | 10 | 14.5 | 50-100 | 8 |
| 12 | – | 12 | 16.5 | 50-100 | 8 |
| 13 | 1/2 | 13 | 17.5 | 50-100 | 8 |
| 16 | 5/8 | 16 | 21.5 | 50-100 | 8 |
| 19 | 3/4 | 19 | 25 | 50-100 | 6 |
| 25 | 1 | 25 | 31 | 50-100 | 6 |
| 32 | 1 1/4 | 32 | 40 | 50-100 | 5 |
| 38 | 1 1/2 | 38 | 47.5 | 50-100 | 5 |
| 50 | 2 | 50 | 61 | 50-100 | 5 |
