Braided Suction Hose [X-LINE KL]
Built for reliable suction performance with added strength, flexibility, and durability
Heavy Duty Water Suction & Discharge Hose
Our heavy duty water suction and discharge hose is engineered for high vacuum and pressure applications. As a trusted supplier in Saudi Arabia, Power Flow Company offers:

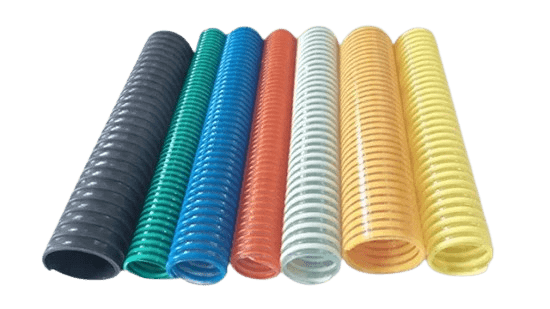

This heavy duty water suction and discharge hose is designed for demanding applications that require both strong vacuum performance and higher working pressures. Manufactured using flexible PVC with a rigid PVC helix and reinforced synthetic braiding, the hose delivers excellent durability, flexibility, and reliable flow in tough operating conditions.
The smooth bore construction ensures efficient fluid transfer with minimal friction loss, while the corrugated outer surface and external helix allow easy dragging and handling on job sites. Lightweight yet robust, this hose is engineered to withstand abrasion, chemicals, and UV exposure, making it suitable for long term outdoor and industrial use.
Uses
- Water suction and discharge in heavy duty applications
- Construction site dewatering and rental pumping systems
- Fish suction and aquaculture water transfer
- Industrial and municipal water handling
- Applications requiring both vacuum and pressure performance
Technical Details
- Material: Flexible PVC with rigid PVC helix and synthetic braiding
- Temperature Range: -13°F to 140°F
- Application Type: Water suction and discharge
Want to know more details ? Talk to us
Specifications
| I.D (Inches) | O.D (Inches) | Pitch (Inches) | Minimum Bend Radius 72°F(Inches) | Working Pressure 72°F(Psi) | Vacuum Rating 72°F(In Hg) | Weight (Lbs/ft) | Standard Length(ft) |
|---|---|---|---|---|---|---|---|
| 1 1/2 | 2.10 | 0.37 | 2.5 | 110 | 28.0 | 0.47 | 60,100 |
| 2 | 2.60 | 0.43 | 4.0 | 100 | 28.0 | 0.70 | 60,100 |
| 3 | 3.70 | 0.59 | 6.3 | 100 | 28.0 | 1.13 | 60,100 |
| 4 | 4.80 | 0.65 | 7.1 | 75 | 28.0 | 1.74 | 60,100 |
| 5 | 6.10 | 0.87 | 9.2 | 70 | 28.0 | 2.90 | 60,100 |
| 6 | 7.20 | 0.93 | 10.2 | 70 | 28.0 | 3.88 | 60,100 |
| 8 | 9.50 | 1.07 | 15.7 | 60 | 28.0 | 5.54 | 15,20,25,40 |
Braided Suction Hose [X-LINE KL]
Key Features & Applications
Heavy Duty Chemical Suction Hose
Designed for demanding applications requiring both vacuum and pressure performance
Optimized Flow Efficiency
Smooth internal bore ensures efficient water movement with minimal restriction
Reinforced Construction
- Flexible PVC with rigid helix and synthetic braiding for strength and durability
Enhanced Flexibility & Handling
Corrugated outer surface and external helix allow easy dragging and positioning
Versatile Applications
Ideal for construction dewatering, rental equipment, and fish suction operations
Temperature Range
- Operates from -13°F to 140°F
