Reliable Performance for Everyday Water Transfer Applications

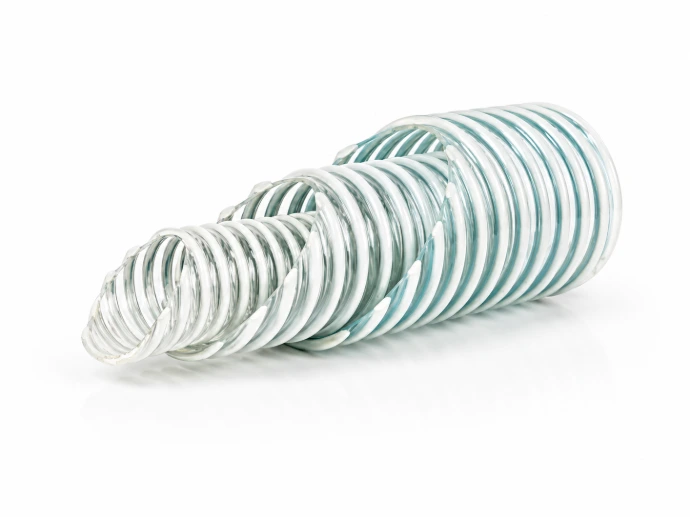

The General Duty Suction Hose [KL-C] is engineered for dependable water suction and discharge in a wide range of everyday industrial, utility, and site based applications. Designed to balance strength with flexibility, this hose ensures smooth fluid transfer while remaining easy to handle during installation, relocation, and routine operations. Its lightweight yet durable construction makes it an ideal solution for contractors, maintenance teams, and general industrial users who require consistent performance without unnecessary complexity.
Built to perform reliably under varying site conditions, the KL-C hose offers excellent mobility, allowing it to bend and maneuver easily without kinking or collapsing during suction. Its good pressure resistance supports steady operation during continuous water flow, while the robust hose wall provides long service life even in demanding working environments. The smooth internal surface promotes efficient flow and minimizes friction losses during suction and discharge.
The hose is manufactured to withstand harsh external factors, offering strong resistance to abrasion, chemicals, and UV exposure. This makes it suitable for both indoor and outdoor use, including prolonged exposure to sunlight and contact with commonly encountered industrial fluids. With a wide service temperature range from -20°F to 140°F, the General Duty Suction Hose [KL-C] maintains flexibility and structural integrity across different climates and operating conditions, ensuring reliable performance throughout the year.
What do you want to promote ? See more
Specifications
| I.D (Inches) | O.D (Inches) | Pitch (Inches) | Minimum Bend Radius 72°F (Inches) | Working Pressure 72°F (Psi) | Vacuum Rating 72°F (In Hg) | Weight (Lbs/ft) | Standard Length (ft) |
|---|---|---|---|---|---|---|---|
| 1 | 1.25 | 0.3 | 1.5 | 50 | 29.8 | 0.18 | 100 |
| 1 1/4 | 1.52 | 0.33 | 2.0 | 45 | 29.8 | 0.22 | 100 |
| 1 1/2 | 1.81 | 0.35 | 2.5 | 45 | 29.8 | 0.35 | 100 |
| 2 | 2.36 | 0.39 | 3.0 | 40 | 29.8 | 0.50 | 100 |
| 2 1/2 | 2.87 | 0.56 | 4.5 | 35 | 29.8 | 0.68 | 100 |
| 3 | 3.5 | 0.59 | 6.0 | 35 | 29.8 | 1.00 | 100 |
| 4 | 4.63 | 0.65 | 8.0 | 30 | 29.8 | 1.52 | 100 |
| 6 | 6.85 | 0.87 | 11.0 | 30 | 28.0 | 3.10 | 50,100 |
| 8 | 9.04 | 0.91 | 16.0 | 30 | 28.0 | 5.38 | 25 |
| 10 | 11.26 | 1.02 | 30.0 | 30 | 28.0 | 8.88 | 20 |
